Banister railing MODULRÄCKE stair
Smekab Citylifes MODULRÄCKE och TRAPPRÄCKE representerar en robust och moduluppbyggd lösning för räcken, vilket inte bara fungerar som en vägledning utan också skapar en känsla av trygghet i den offentliga utemiljön.
Recommended colors
For more information about Smekab Citylife's complete range of RAL colours, see the colour chart.
Recommended colors
VFZ
RAL1013
RAL1019
RAL1021
RAL2004
RAL2008
RAL3003
RAL3015
RAL3020
RAL4010
RAL5002
RAL5011
RAL5015
RAL5019
RAL5024
RAL6007
RAL6009
RAL6010
RAL6018
RAL6019
RAL6024
RAL6027
RAL7006
RAL7010
RAL7022
RAL7016
RAL7024
RAL7035
RAL8004
RAL8019
RAL8024
RAL9005
RAL9006
RAL9007
RAL9010
VFZ
CORTEN
Inspiration
Facts
Product name
Banister railing MODULRÄCKE stair
Designer
Smekab Citylife
Produced by
Smekab Citylife
Properties
- För trappa
- Modulär
Material
- Steel, hot galvanized
Anchoring
Ground anchoring

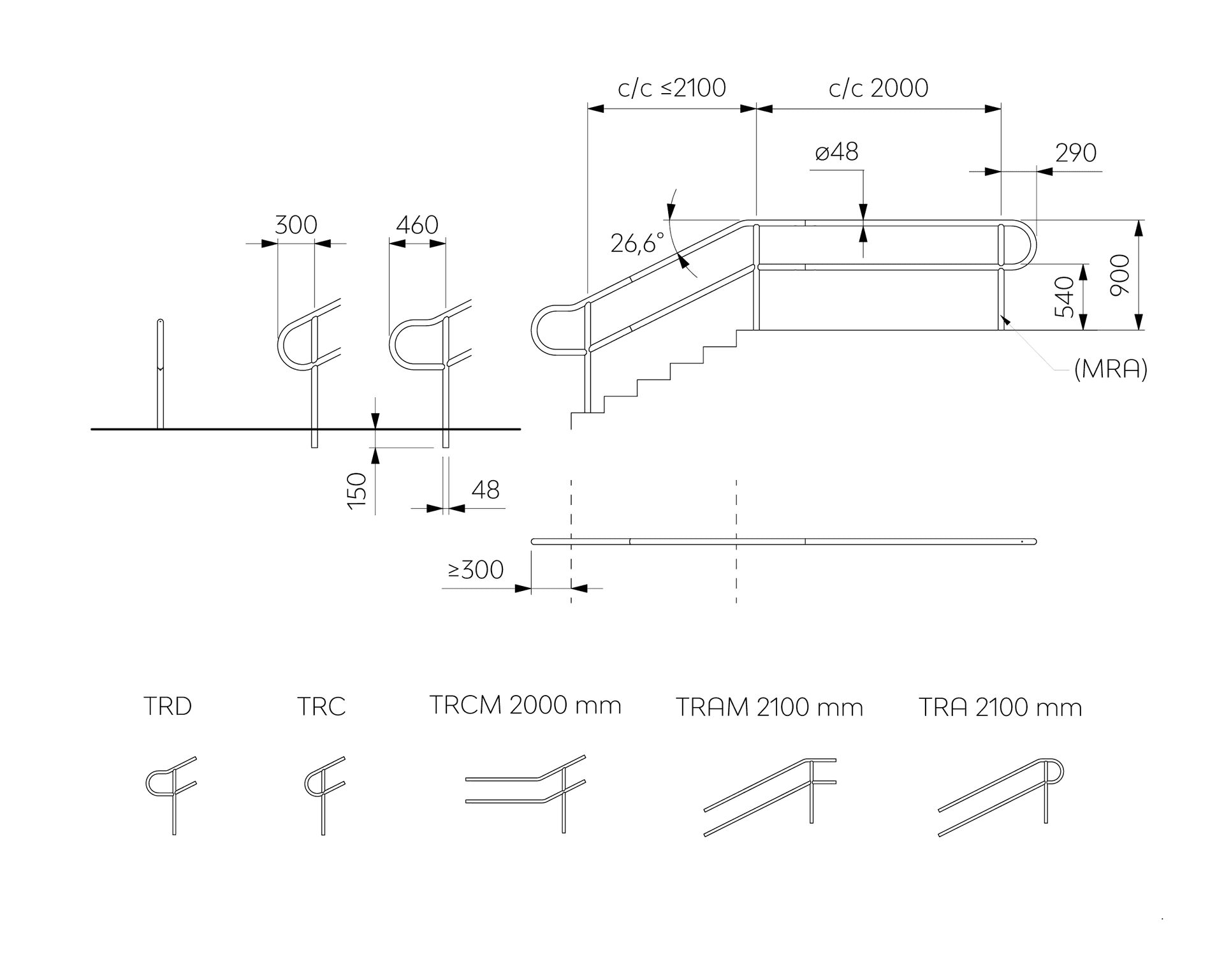

Height
900 mm
Diameter Post
48 mm
Diameter railing pipe
48 mm
CC posts
2000, 2100 mm
Product family
Articles
Here you will find information about articles and accessories.
Articles
| Name |
|---|
| Räcke MODULRÄCKE trappa |
Options, anchoring
Downloads
- DWG files
- modulracke-dwg.zip
- Assembly instructions
- Installation-MODULRACKE-TRAPPRACKE-77900005-2022-10-18-sv.pdf (1)
Warranties and Maintenance
- Warranties
- See documents
- Maintenance
- See documents
