Railing SKYDDSRÄCKE
SKYDDSRÄCKE represents a powerful and versatile fence that is suitable for all types of environments. Made in a solid and fully welded tubular construction, the sections offer reliable protection.
Recommended colors
For more information about Smekab Citylife's complete range of RAL colours, see the colour chart.
Recommended colors
VFZ
RAL9005
Inspiration
Facts
Product name
Railing SKYDDSRÄCKE
Designer
Smekab Citylife
Produced by
Smekab Citylife
Properties
- För plan mark
- Med räckesfyllning, stål
Material
- Steel, hot galvanized
- Steel, hot galvanized and powder coated
Anchoring
Ground anchoring, Bolting

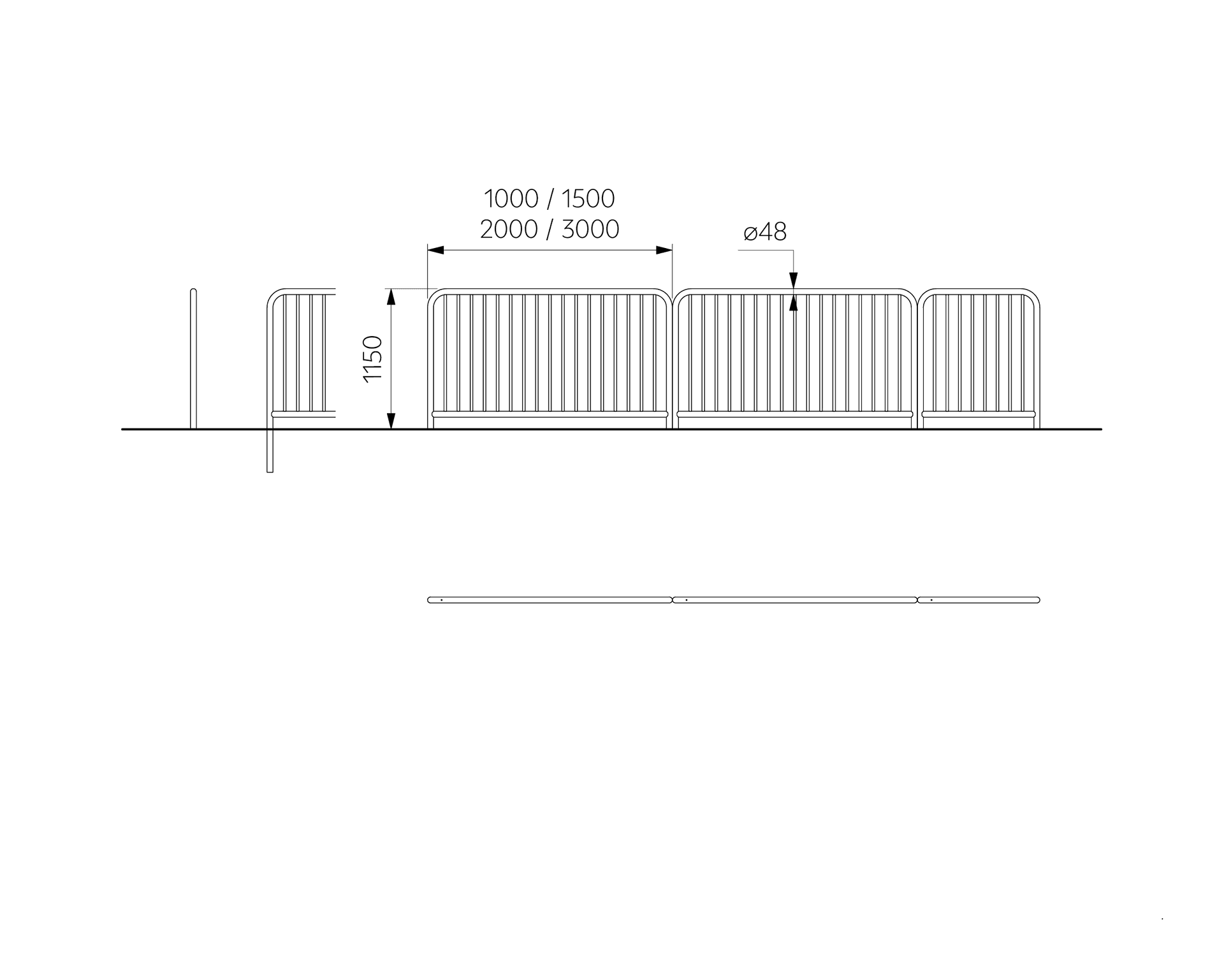

Height
1150 mm
Length
1000, 1500, 2000, 3000 mm
Diameter Post
48 mm
Product family
Articles
Here you will find information about articles and accessories.
Articles
| Art. no. | Name | Length |
|---|---|---|
| 71151000 | SKYDDSRÄCKE 1,0 m fastb | 1000 mm |
| 71151000X | SKYDDSRÄCKE 1,0 m fastb RAL_____ | 1000 mm |
| 71151000B | SKYDDSRÄCKE 1,0 m fastb RAL9005 | 1000 mm |
| 70151000 | SKYDDSRÄCKE 1,0 m nedg | 1000 mm |
| 70151000X | SKYDDSRÄCKE 1,0 m nedg RAL_____ | 1000 mm |
| 70151000B | SKYDDSRÄCKE 1,0 m nedg RAL9005 | 1000 mm |
| 71151500 | SKYDDSRÄCKE 1,5 m fastb | 1500 mm |
| 71151500X | SKYDDSRÄCKE 1,5 m fastb RAL____ | 1500 mm |
| 71151500B | SKYDDSRÄCKE 1,5 m fastb RAL9005 | 1500 mm |
| 70151500 | SKYDDSRÄCKE 1,5 m nedg | 1500 mm |
| 70151500X | SKYDDSRÄCKE 1,5 m nedg RAL_____ | 1500 mm |
| 70151500B | SKYDDSRÄCKE 1,5 m nedg RAL9005 | 1500 mm |
| 71152000 | SKYDDSRÄCKE 2,0 m fastb | 2000 mm |
| 71152000X | SKYDDSRÄCKE 2,0 m fastb RAL____ | 2000 mm |
| 71152000B | SKYDDSRÄCKE 2,0 m fastb RAL9005 | 2000 mm |
| 70152000 | SKYDDSRÄCKE 2,0 m nedg | 2000 mm |
| 70152000X | SKYDDSRÄCKE 2,0 m nedg RAL_____ | 2000 mm |
| 70152000B | SKYDDSRÄCKE 2,0 m nedg RAL9005 | 2000 mm |
| 71153000 | SKYDDSRÄCKE 3,0 m fastb | 3000 mm |
| 71153000X | SKYDDSRÄCKE 3,0 m fastb RAL_____ | 3000 mm |
| 71153000B | SKYDDSRÄCKE 3,0 m fastb RAL9005 | 3000 mm |
| 70153000 | SKYDDSRÄCKE 3,0 m nedg | 3000 mm |
| 70153000X | SKYDDSRÄCKE 3,0 m nedg RAL_____ | 3000 mm |
| 70153000B | SKYDDSRÄCKE 3,0 m nedg RAL9005 | 3000 mm |
Options, anchoring
Downloads
- DWG files
- skyddsracke-dwg.zip
- Assembly instructions
- Installation-SKYDDSRACKE-77900137-2019-10-30-sv.pdf (2)
Warranties and Maintenance
- Warranties
- See documents
- Maintenance
- See documents
